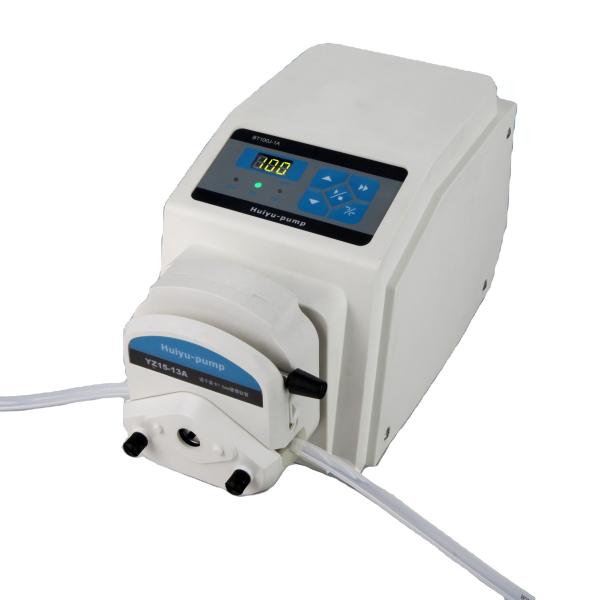

BT100 YZ1515X peristaltic pump

Name: BT100 YZ1515X peristaltic pump
Brand: Huiyu fluid, pompe peristaltique
Price: 265.00 USD

Quality BT100 YZ1515X peristaltic pump wholesale

Customized support : OEM

Brand Name : Huiyu fluid, pompe peristaltique

Model Number : BT100J-1A, BT100J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Wastewater Transport and Flood Control, wastewater treatment, chemical dosing ,transfer ,filling,dispensing

Horsepower : 40W

Power Source : Electric

Pressure : 0.2mpa

Structure : peristaltic pump

Cable Length : 1.5m

Outlet Size : 6.4mm

Voltage : 220v

Power : 40w

Theory : Reciprocating Pump

Motor speed : 1 to 100 rpm, reversible

Flow rate : 0.00025-380ml/min

Power supply : AC 90V-260 V 50/60 Hz

Power consumption : ≤30 W

Dimensions : 243x151x157 (mm)

Certification : ce

Packaging Details : pompe peristaltique
packing:1set in 1 carton , size: 39cm x 22cm x 24cm

Port : Beijing

Supply Ability : 1000 Set/Sets per Week

Price : $265.00/sets 1-4 sets

Contact Now

Product Description

pompe peristaltique

BT100J-1A CE approved peristaltic pump

BT100 YZ1515X peristaltic pump

Technical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head	Model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-380ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	0.2-270ml/min
	DG10-lA	wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG10-1B		0.0002-32ml/min
	DG10-2A		0.00025-48ml/min (Single channel)
	DG10-2B		0.0002-32ml/min (Single channel)
	BZ25-lA	24# wall thickness:2.5mm	0.26-260ml/min

Tubing details

Suitable pump head

BT100 YZ1515X peristaltic pump

Packaging & Shipping

BT100 YZ1515X peristaltic pump

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Accessories

BT100 YZ1515X peristaltic pump

OEM option

BT100 YZ1515X peristaltic pump

CE certificate

BT100 YZ1515X peristaltic pump
