mini peristaltic pump for chemical liquid transfer

Name: mini peristaltic pump for chemical liquid transfer
Brand: Huiyu fluid, medical peristaltic pump
Price: 200.00 USD

Customized support : OEM

Brand Name : Huiyu fluid, medical peristaltic pump

Model Number : BT100J-1A, BT100J-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry, Pharmaceutical industry, wastewater treatment, Metering

Power Source : Electric

Pressure : Low Pressure, Low Pressure

Structure : peristaltic pump

Power : Electric

Standard or Nonstandard : Nonstandard

Theory : Reciprocating Pump

Motor speed : 1 to 100 rpm, reversible

Flow rate : 0.00025-380ml/min

Supply Ability : 1000 Set/Sets per Week

Price : $200.00 - $450.00/sets

Contact Now

Product Description

medical peristaltic pump

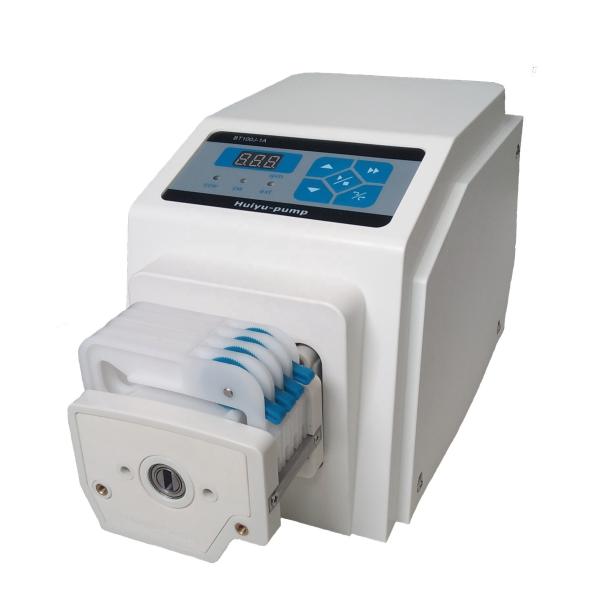

BT100J-1A CE approved peristaltic pump sampler

mini peristaltic pump for chemical liquid transfer

Technical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31

Technical Data Sheet

Pump head	Model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm	0.07-380ml/min
	YZ25-l3A	15#, 24# wall thickness:2.5mm	0.2-270ml/min
	DG10-lA	wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG10-1B		0.0002-32ml/min
	DG10-2A		0.00025-48ml/min (Single channel)
	DG10-2B		0.0002-32ml/min (Single channel)
	BZ25-lA	24# wall thickness:2.5mm	0.26-260ml/min

Tubing details

Suitable pump head

mini peristaltic pump for chemical liquid transfer

Accessories

mini peristaltic pump for chemical liquid transfer

CE certificate

mini peristaltic pump for chemical liquid transfer

Web:www.avtechnology.co.uk

TRACKING No:GB/1067/4817/13

mini peristaltic pump for chemical liquid transfer

OEM option

mini peristaltic pump for chemical liquid transfer

Packaging & Shipping

mini peristaltic pump for chemical liquid transfer

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.
